Methane emissions measurement sits at the heart of modern pipeline regulation, and two fundamentally different approaches shape how operators understand and report their emissions. Top-down and bottom-up methane measurement are not competing methods so much as complementary tools, each answering a different question about where emissions come from and how much gas is escaping. Understanding the distinction matters more than ever in 2026, as the EU Methane Regulation pushes transmission system operators toward source-level reporting and site-level quantification under the OGMP 2.0 framework.
What is top-down methane measurement?
Top-down methane measurement quantifies total emissions from an entire facility, pipeline corridor, or geographic area by observing the atmosphere above it. Rather than cataloguing individual sources one by one, top-down methods capture the combined signal of all emissions in a given zone and work backward to estimate the total flux. The approach is inherently integrative: it tells you how much methane is escaping from a site or network segment as a whole.
Airborne platforms are the most practical top-down tools for pipeline infrastructure. A sensor-equipped helicopter or aircraft flies over a facility or pipeline route, measuring methane concentrations across a wide corridor. Because the platform covers large distances quickly, top-down surveys are well suited to transmission networks spread across rural terrain, where walking every meter of pipe would be prohibitively slow and costly. The result is a total emissions figure anchored to a specific location and time, which operators can use to verify whether their source-level estimates add up.
What is bottom-up methane measurement?
Bottom-up methane measurement builds an emissions picture from the ground up by identifying and quantifying individual emission sources at the component or asset level. An operator conducting a bottom-up survey walks a pipeline route or inspects a compressor station, measuring each valve, flange, fitting, and potential leak point separately. The individual measurements are then summed to produce a total estimate for the asset or network.
This approach aligns directly with the source-level reporting requirements of the EU Methane Regulation, which requires transmission system operators to measure emissions at individual sources rather than relying on generic emission factors or aggregate estimates. Bottom-up surveys are detailed and granular, making them the foundation of any serious leak detection and repair programme. The limitation is coverage speed: thorough bottom-up inspection of a long pipeline network demands significant time and personnel, which is why it is typically focused on prioritised zones rather than applied uniformly across hundreds of kilometres.
What’s the difference between top-down and bottom-up methane measurement?
The core difference lies in the direction of inquiry. Bottom-up measurement asks: where are the individual sources, and how much does each one emit? Top-down measurement asks: what is the total amount of methane leaving this site or corridor? One builds upward from components; the other looks down at the aggregate signal.
This distinction has a practical consequence that is central to the OGMP 2.0 Level 5 Gold Standard: reconciliation. When operators combine both approaches, they can compare the sum of their source-level measurements against the independently measured site total. If the numbers match, the source inventory is likely complete. If the top-down total is significantly higher than the bottom-up sum, there are unaccounted emissions somewhere in the system, whether from a missed source, a miscalibrated instrument, or a leak that was not detected during the bottom-up survey. Discrepancies drive continuous improvement in data quality, which is precisely why regulators require both methods for above-ground facilities such as compressor stations, metering stations, and storage facilities.
- Bottom-up: Source-specific, component-level, granular, slower to execute over large areas
- Top-down: Site-wide or corridor-wide, integrative, faster over large distances, independent of source catalogues
- Combined: Enables reconciliation, reveals gaps, and satisfies OGMP 2.0 Level 5 requirements
Which methane measurement method is more accurate?
Neither method is inherently more accurate than the other because they measure different things. A bottom-up survey can be extremely precise at the source level while still missing a significant leak that was not included in the inspection scope. A top-down survey can accurately capture total site emissions but cannot, on its own, tell you which component is responsible for a spike in the signal.
Accuracy in practice depends on the quality of the technology used and the conditions under which measurements are taken. For bottom-up surveys, detection sensitivity matters enormously. The EU Methane Regulation distinguishes between Type-1 inspections, which require a detection limit of 17 g/h or 7,000 ppm, and the more demanding Type-2 inspections, which require a detection limit of 5 g/h or 1,000 ppm. Higher sensitivity means fewer emissions go undetected, and the Type-2 threshold is achievable only with sophisticated equipment.

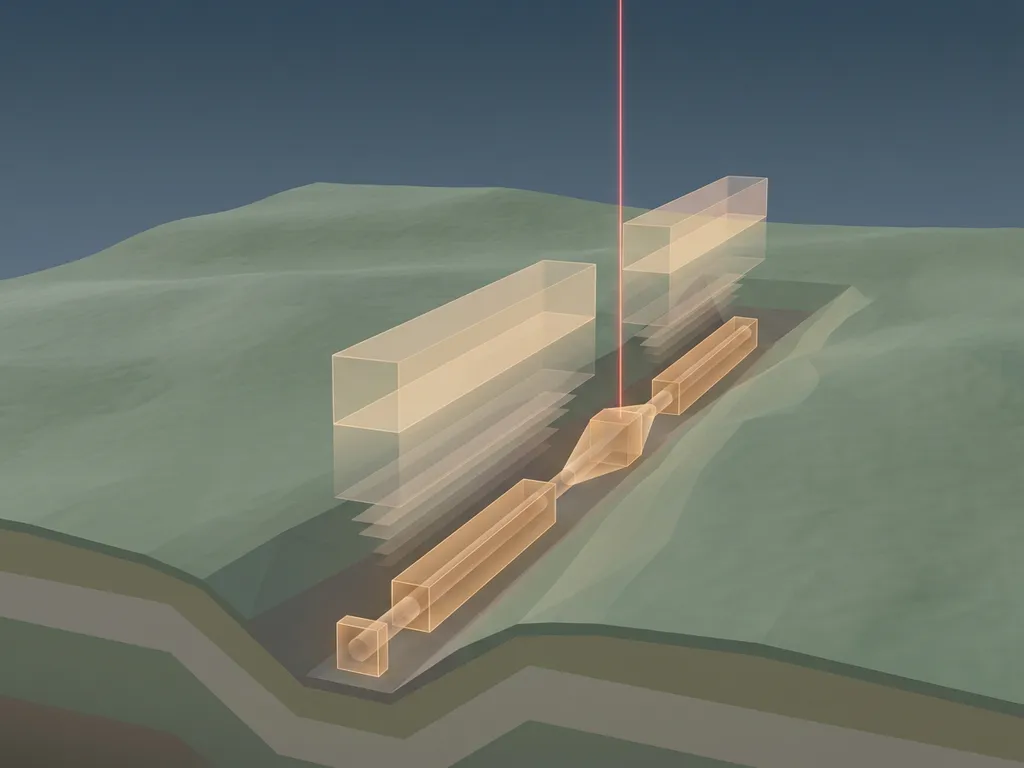

For top-down surveys, the key accuracy factors are spatial resolution, measurement sensitivity, and the ability to attribute a detected signal to a specific location. A technology that produces only a string of measurement points along a pipeline centerline, rather than a grid covering the full corridor on either side, risks missing plumes that have migrated laterally underground before reaching the surface. Research from METEC and the Engler-Bunte Institute confirms that underground gas does not always emerge directly above the leak point: it travels through the soil and the plume widens, meaning detection coverage must extend at least 10 meters on either side of the pipeline centerline at a spatial resolution better than 2 meters.
The honest answer is that the two methods are most accurate when used together, with each compensating for the blind spots of the other.
How does airborne methane detection work in practice?
Airborne methane detection uses laser-based technology to measure methane concentrations remotely from a helicopter or fixed-wing aircraft flying above the pipeline route. The most established technique for this purpose is Differential Absorption LIDAR, or DIAL, which exploits the fact that methane absorbs laser light at specific wavelengths. The system emits two laser pulses at slightly different wavelengths: one tuned to a wavelength that methane absorbs strongly, and one that it does not. By comparing the two return signals, the system calculates the column-integrated methane concentration along the laser path, without needing to physically contact the gas or the ground.
In a practical survey, the helicopter flies at speeds of up to 180 km/h at an altitude of 100 to 150 meters. At this height and speed, the system generates a dense grid of measurement points across a corridor wide enough to capture plumes that have migrated laterally from the pipeline. A high sampling rate is essential: at 1,000 measurements per second, the sensor captures enough data points per meter of flight path to resolve small, localised anomalies rather than averaging them into the background signal.
Each measurement point is georeferenced to sub-meter accuracy, so any detected anomaly can be mapped precisely and handed to a ground team for follow-up investigation. This is the Step 1 surface screening role defined in the EU Methane Regulation’s two-step LDAR methodology. Aerial screening identifies the zones that warrant ground investigation; ground teams then carry out Step 2 source confirmation by drilling bar holes or excavating to measure directly at the source. The repair obligation is triggered only at Step 2, when the 1,000 ppm threshold is met at the source itself. This structure makes airborne methane detection services a highly efficient way to prioritise ground inspection resources across long pipeline networks.
When should pipeline operators use top-down vs. bottom-up methods?
The choice of method depends on the question an operator needs to answer and the type of infrastructure being inspected. In practice, regulatory requirements in 2026 are increasingly pushing operators toward using both methods rather than choosing between them.
Top-down airborne surveys are best suited to:
- Long rural transmission corridors where walking every meter is impractical
- Connection networks between dense urban grids, where aerial speed makes the approach cost-competitive
- Rapid screening after an incident or as part of a scheduled LDAR programme to prioritise where ground teams should focus
- Site-level quantification of total emissions from compressor stations, metering stations, and storage facilities
Bottom-up surveys are best suited to:
- Dense urban distribution networks where on-foot or vehicle-based surveys can cover the route efficiently
- Step 2 source confirmation after an aerial or vehicle-based screen has flagged an anomaly zone
- Component-level inspection of above-ground infrastructure where individual valves, flanges, and fittings need to be measured separately
For above-ground facilities, the EU Methane Regulation requires both: source-level identification of individual emission points and a site-level total measurement to verify the source inventory. This dual requirement reflects the OGMP 2.0 Level 5 Gold Standard, which all EU assets must meet by August 2028. Operators who build a programme that combines top-down and bottom-up methods now will be better positioned to meet that deadline and to demonstrate continuous improvement in their emissions data.
How ADLARES supports top-down and bottom-up methane measurement
We developed our CHARM technology specifically to bridge the gap between top-down and bottom-up methane measurement, giving pipeline operators a single airborne platform that addresses both regulatory layers. CHARM is the world’s only DVGW-approved airborne gas remote detection system, and it has been in commercial use since 2008, covering more than 250,000 km of gas pipelines across Europe.
Here is what we deliver in a single survey:
- Top-down site quantification: CHARM measures total methane emissions from compressor stations, metering stations, and storage facilities, providing the independent site-level total required for OGMP 2.0 Level 5 reconciliation
- Step 1 surface screening: Flying at up to 180 km/h at 100 to 150 meters altitude, CHARM generates a dense measurement grid covering the full pipeline corridor, with a verified surface sensitivity of 300 ppm and georeferenced anomaly reports accurate to better than 2 meters
- Type-2 compliance: CHARM meets the EU Methane Regulation’s Type-2 detection threshold of 5 g/h or 1,000 ppm, qualifying operators for the three-year underground pipeline inspection interval
- Secure Web GIS reporting: Survey results are delivered through a secure Web GIS platform accessible on desktop and mobile, so grid operators can verify anomalies and dispatch ground teams without delay
Whether you are planning your first OGMP 2.0 Level 5 survey, preparing for the August 2028 deadline, or looking to reduce the cost of your LDAR programme by targeting ground inspection resources more efficiently, we are ready to help. Contact us to discuss how CHARM can be integrated into your inspection programme.
