Fenceline monitoring has become an increasingly important concept in the world of pipeline inspection and emissions management. As regulators tighten their grip on methane emissions across Europe and beyond, operators of gas infrastructure need a clear understanding of what fenceline monitoring is, how it works, and when it is the right tool for the job. Whether you manage a transmission network, a compressor station, or a distribution grid, knowing the strengths and limitations of different monitoring approaches helps you make smarter decisions about compliance and leak detection.
What is fenceline monitoring and why does it matter?
Fenceline monitoring refers to the continuous or periodic measurement of gas concentrations at the boundary of an industrial site or along the perimeter of a pipeline corridor. The core idea is to detect emissions that escape a facility or infrastructure asset before they disperse into the wider environment. Sensors are typically placed at fixed points around the perimeter, creating a virtual boundary that flags when methane or other gases cross a defined threshold.
The method matters for several reasons. First, it provides a persistent watch over a site without requiring constant human presence. Second, it generates time-stamped concentration data that can support regulatory reporting. Third, when combined with wind data, fenceline measurements can be used to estimate emission rates from a facility as a whole. As the EU Methane Regulation places growing obligations on gas operators to detect, quantify, and report emissions, fenceline monitoring has moved from a nice-to-have to a core part of the compliance toolkit.
How does fenceline monitoring work in practice?
In practice, fenceline monitoring systems rely on a network of sensors positioned at the perimeter of a site or along a defined corridor. These sensors continuously sample the air and transmit concentration readings to a central data platform. When concentrations rise above a background level, the system flags a potential emission event.
Wind direction and speed data are essential companions to the concentration readings. By knowing where the wind is coming from and how fast it is moving, analysts can trace an elevated reading back toward its likely source within the facility. This inverse dispersion modelling approach allows operators to pinpoint emission areas without physically walking every metre of the site. The resulting data can then feed directly into regulatory reports or trigger a ground-level follow-up inspection to confirm and quantify the source.
One practical limitation worth understanding is that fenceline systems measure what reaches the perimeter, not what is happening at the source. Dilution, wind variability, and the distance between the emission point and the sensor all affect what the perimeter sensor actually detects. This is why fenceline monitoring is often used as a site-level screening tool rather than a precise source-identification method on its own.
What are the main types of fenceline monitoring methods?
Several distinct approaches fall under the broad label of fenceline monitoring, each with different strengths depending on the site type and regulatory requirement.

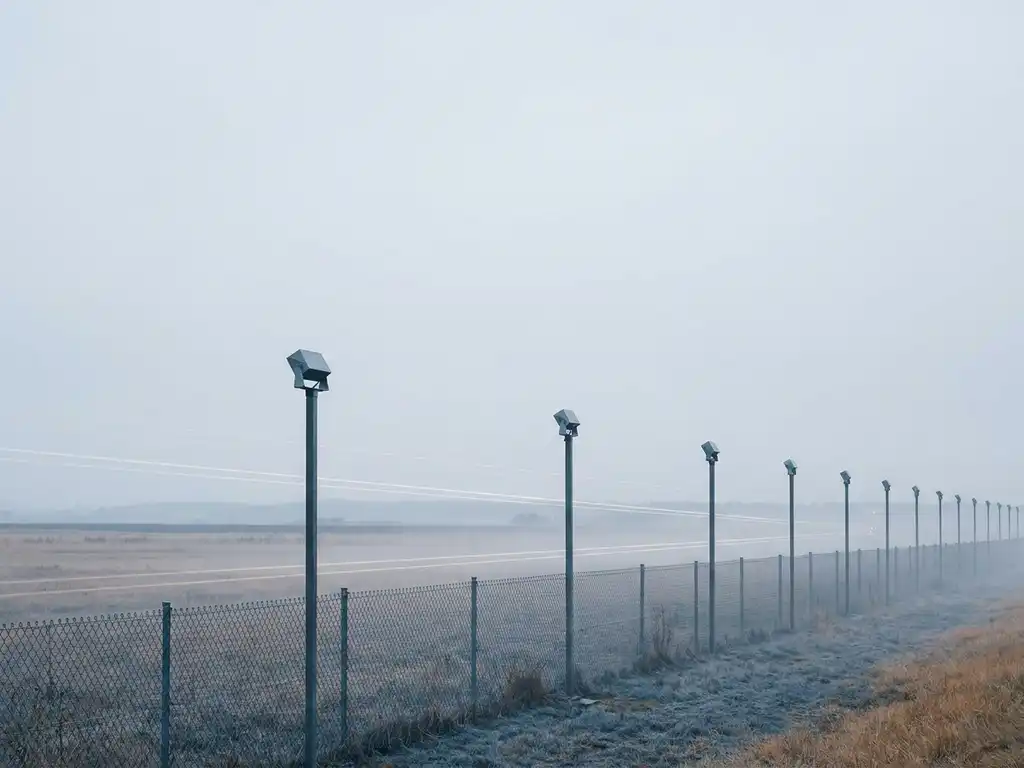

- Fixed point sensors: Individual gas detectors placed at intervals around a perimeter. These are relatively low-cost and straightforward to install, but their spatial resolution depends heavily on how many sensors are deployed and how far apart they are placed.
- Open-path optical sensors: Laser-based instruments that project a beam across an open space and measure the integrated concentration of gas along that path. They cover larger distances than point sensors and are well suited to detecting diffuse emissions across a wide area.
- Mobile and vehicle-based surveys: Instruments mounted on vehicles that drive the perimeter or pipeline route, sampling the air at close range. This approach offers flexibility but provides a snapshot rather than continuous coverage.
- Aerial and airborne screening: Helicopter or drone-mounted sensors that scan a corridor or facility from above. While technically distinct from traditional fenceline monitoring, airborne methods serve a comparable screening function at much larger scales and higher speeds.
Each method occupies a different position on the trade-off between spatial coverage, detection sensitivity, and cost. Aerial methane detection services are particularly well suited to long pipeline corridors and large above-ground facilities where ground-based fenceline methods would require enormous sensor networks to achieve comparable coverage.
What regulations require fenceline monitoring for pipelines?
The regulatory landscape for methane emissions monitoring has shifted significantly in recent years. The EU Methane Regulation, which entered into force in 2024, establishes a structured leak detection and repair (LDAR) framework for gas infrastructure operators across the European Union. This framework directly affects how and how often operators must survey their assets.
Under the regulation, operators are required to carry out regular surface screening of underground pipelines and to perform both source-level and site-level emission measurements at above-ground facilities such as compressor stations, metering stations, and storage sites. The two-step LDAR methodology defined in the regulation separates surface screening (Step 1) from source confirmation after ground access (Step 2). Fenceline and perimeter monitoring approaches can contribute to Step 1 screening obligations, particularly at above-ground facilities.
Beyond the EU framework, operators in many countries are also subject to national standards and industry guidelines. In Germany, for example, DVGW technical standards set requirements for pipeline inspection methods and data quality. Regardless of the specific framework that applies, the general direction of travel is clear: regulators expect operators to demonstrate that their monitoring programmes are systematic, documented, and capable of detecting emissions at meaningful sensitivity levels.
How accurate is fenceline monitoring for detecting methane leaks?
Accuracy in fenceline monitoring depends on several interacting factors: sensor sensitivity, sensor placement, wind conditions, and the distance between the emission source and the measurement point. Research by institutions such as METEC (Methane Emissions Technology Evaluation Center) and the Engler-Bunte Institute has shown that underground gas emissions do not always surface directly above the leak point. Gas travels through soil and the emission plume widens before reaching the surface, which means a sensor positioned only at the perimeter may receive a diluted and spatially displaced signal.
For reliable detection of underground pipeline leaks, studies indicate that a measurement grid covering at least 10 metres on either side of the pipeline centerline, with spatial resolution better than 2 metres, is necessary. Each measurement point should be capable of detecting concentration levels well below the 1,000 ppm threshold defined in the EU Methane Regulation, with a sensitivity margin of at least three times that threshold to ensure reliability under variable conditions. A system that produces only a string of measurement points along the pipeline centerline cannot reliably detect all real leaks, because the plume may have migrated sideways before reaching the surface.
Fenceline monitoring at facility level faces a related challenge: the further a sensor is from the emission source, the more dilution has occurred. This makes quantification less precise, though inverse dispersion modelling can partially compensate. For the highest accuracy in quantifying total site emissions, a method that can measure concentrations across the full spatial extent of the facility, combined with reliable wind data, produces the most defensible results.
When should operators choose airborne monitoring over ground-based methods?
Ground-based fenceline monitoring and airborne inspection are not competing alternatives. They serve different purposes and work best when used together within a structured programme. Understanding when each approach adds the most value helps operators allocate their inspection budgets effectively.
Ground-based and vehicle-based surveys excel in dense urban distribution networks where the pipe trace runs close to the surface, access is straightforward, and the inspection team can work at close range to the pipe. At close range, portable instruments can achieve very high sensitivity, making them well suited to the detailed source confirmation work required at Step 2 of the LDAR process.
Airborne monitoring becomes the more practical and cost-efficient choice in several specific situations:
- Long rural transmission corridors where walking or driving every kilometre would take months and significant labour cost.
- Connection networks between urban grids where the pipeline runs through terrain that is difficult or time-consuming to access on foot.
- Large above-ground facilities such as compressor stations, where a single airborne pass can map emission sources at asset level and quantify total site emissions simultaneously.
- Rapid screening following an incident or regulatory deadline, where inspection speed is critical and a network of thousands of kilometres needs to be covered in weeks rather than months.
The two-step LDAR methodology supports exactly this kind of division of labour. Airborne Step 1 screening identifies anomaly zones across a wide network quickly, and ground teams then focus their Step 2 confirmation work on the prioritised locations only. This reduces the total route length requiring on-foot inspection and makes the overall programme significantly more efficient. For operators managing extensive pipeline networks, pipeline inspection services that combine airborne screening with structured ground follow-up represent the most practical path to full regulatory compliance.
How ADLARES helps with fenceline and methane monitoring
We at ADLARES offer a proven airborne methane detection service that addresses the core challenges of pipeline inspection and site-level emissions monitoring at scale. Our CHARM® technology, developed together with DLR (German Aerospace Center) and the only DVGW-approved gas remote detection system in the world, has been used to inspect over 250,000 km of gas pipelines across Europe since entering commercial service in 2008.
Here is what we bring to operators looking to meet their monitoring and compliance obligations:
- High-sensitivity pipeline screening: CHARM® scans a 24 to 25 metre wide corridor at up to 165 km/h with 1,000 measurement points per second, covering the full grid required for reliable underground leak detection on either side of the pipeline centerline.
- Active pipeline tracking and quality assurance: Our system keeps the scan centerline within 0.5 metres of the pipeline and monitors coverage in real time during flight. Sections that do not meet quality criteria are flagged for re-flight before the survey is complete.
- Site-level quantification for above-ground facilities: We scan compressor stations, metering stations, and storage facilities from the air, mapping emission sources at asset level and calculating total site emission flow rates in kg/h, meeting both the source-level and site-level requirements of the EU Methane Regulation in a single survey.
- Rapid reporting via secure Web GIS: Survey results are delivered through a secure Web GIS platform accessible on desktop and mobile, so your team can verify and act on gas indications without delay.
- EU Methane Regulation Type 2 compliance: CHARM® provides the sensitivity required for Type 2 certification under the EUMR framework, enabling operators to benefit from extended inspection intervals and reduced long-term inspection costs.
If you manage a gas transmission or distribution network and want to understand how airborne methane monitoring fits into your compliance programme, we are ready to help. Visit our website to learn more about CHARM® or get in touch with our team to discuss your specific inspection requirements.
